2020 New Steel Structure Garage Frame With Grey Color -Hot Sales
Advantages
1. Stable and earthquake resistance
2. Wind resistance
3. Long using time up to 50 years
4. Sound insulation
5. Environment friendly: most of the excess materials can be
recycled
6. Fast construction, time saving and labor saving
7. Lower cost and easy mainteance
| THE SPECIFIC GOODS USUALLY INCLUDED IN A PROJECT |
| No. | Item | Description |
| Ⅰ | steel skeloton system | column,beam, roof bracing between rafter,bracing between
column,roof and wall purline with sag rod,flange bracing |
| Ⅱ | fastening parts | anchor bolts,high-strength bolts,ordinary bolts |
| Ⅲ | roof and wall cladding system | roof and wall steel sheet,steel sandwich panel,heat-insulation
materails,skylight,flashings and trims,gutter,downpipe,self-tapping
screw,rivet,sealant,windows and doors etc. |
| Ⅳ | floor deck system | steel floor deck sheet,shear stud,steel edge formwork |
2. Process method
CNC Steel plate cutting---- H Shape Forming ------ Welding By ARC
Soldering Machine---- Straight/ Shape Fixing --- Joint Steel plate
weld by manual--- Sand-blasting---- Paint Treatment Step----Loading
Packing

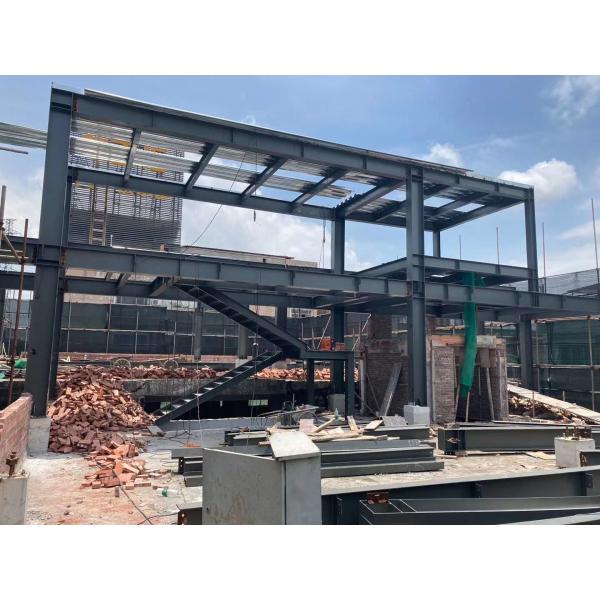

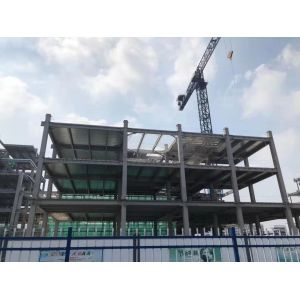

3.Installation Site
4.Roof & wall & accessories.
5. Before sales service

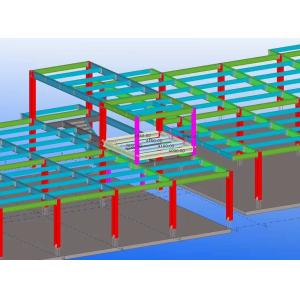

Our excellent design team will design the satisfactory steel
structure drawings for you if you give the following information.
1. Dimension: length, width, height
2. Area and local climate: wind speed, snow load, earthquake
magnitude, etc.
3. Doors and windows: dimension, quantity, position
4. The materials on the roof and the wall
5. Crane need or not. if yes, please tell me the max lifting weight
and max lifting height.
6. If you have other requirements,please also inform us.
7. It is better if you have your own drawings. please send them to
me.
| BUILDING INFORMATION FORM |
| We will give you professional technical solution if you can fill
this for and contact with us by e-mail, fax or tel which listed at
the bottom of this form. |
| Compay Name: |
| Client | | Tel/Fax: | | E-mail: | |
| Building Basic Information |
| Project: | | Project No.: | |
| Location | | Building Usage | | | Total area | |
Length
(m) | | Width
(m) | | Eave Height
(m) | |
| Roof material | |
| Wall material | |
| Design Load and Meteorological Conditions |
Wind load
(kn/m2) | | Wind speed
(m/sec) | | Snow load
(kn/m2) | |
Rainfall
Capacity | | Earthquake Grade | |
| Please fill out the below information if your building has the
mezzine |
| Height of Mezzanine(m) | | Usage of mezzanine | |
| Live load on mezzanine(kn/m2) | |
| Please fill out the below information if your building has the
crane |
Capacity
(t) | | Span
(m) | | Quantity | |
| Hoisting height (m) | | Other information about crane | |
