Q355 Prefabricated Steel Warehouse

Ask Lasest Price
Brand Name :	Hongfa
Model Number :	HF-2680
Certification :	ISO9001:2015
Price :	Price Negotiale
Payment Terms :	L/C, T/T
Supply Ability :	5000 metric tons
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

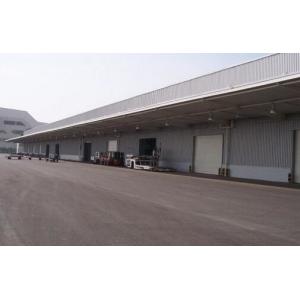

Q355 Prefabricated Steel Warehouse

Professional Prefabricated Warehouse Steel with Metallic Roof Construction

Characters:

1. Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.
2. Low cost: unit price range from USD35 to USD100/square meter FOB according to customer's request.
3. Fast construction and easy in installation
4. Long term service life: more than 50 years.
5. Environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.

Main Structures in Container
Size	No longer than 11.8m
Weight	10~28 tons in each container
Details	The heavy elements: loaded in 40ft OT or loaded in 40HC,40GP or 20GP with steel pallet by crane and forklift.
	The light elements: loaded in 40HC, 40GP or 20GP by hands.
	Small parts: in bags or boxes in case lost
	All the elements should be fixed or stable in the containers in case scratch or broken.

No.	NAME	Steel Structure Warehouse
1	Size	length,width, eave height ,ridge height
2	Structure type	Single slope, double slope, muti slop
3		Single span, double-span, multi-span
4		single floor, double floors......
5	Column	Q235, Q345 / S275/ S355 welded H section steel/ Box Section/ Trusse Section
6	Beam	Q235, Q345 / S275/ S355 welded H section steel/ Trusse Section
7	Purline	Q235 / Q345/ G450 C section or Z section
8	Knee brace	Q235 angle steel
9	Vertical and transversal support	Q235 angle steel, round bar or steel pipe
10	Tie bar	Q235 steel pipe
11	Brace	Q235 round bar / angle
12	Cladding system	EPS, PU, Fiber glass wool sandwich panels or corrugated steel sheet with fiber glass wool insulation. available in different colors&gauge, can use steel or Aluminum or Stainless steel sheet
13	Partition wall	Sandwich panels (EPS, PU, Fiber glass wool etc.) available in different colors&gauges,can use steel or Aluminum or Stainless steel sheet
14	Roof and Wall	Option: EPS, fiber glass, rock wool or PU sandwich panel
15	Door	Fire proof Door, Rolling up Door( Steel or Aluminum or Stainless), Steel Sliding Door,
16	Window	Aluminum Alloy Frame with tempered glass( Sliding type ot Double-open ype)
17	Package Method	Fasten to a steel holder and steel wires before loading into container
18	Loading	20 GP, 40HQ, 40 GP, 40 OT, Flat Container, 45HQ , and Bulk Ship
